Dictation Bar Component

Dictation Bar is a high-level component designed to be integrated quickly and easily in your web application.

Getting started

1. Import resources

Install the SDK via npm:

npm install @invox-medical-npm/invox-dictation

Then import BarComponent as a named export:

import INVOX, { BarComponent } from "@invox-medical-npm/invox-dictation";

Component styles are auto-injected at runtime — no separate CSS import needed.

2. Initialize the component

1. Create a container in the DOM with a unique identifier:

   <div id="invox-bar"></div>


   Copy to clipboard
2. Create and show the component:

   const invoxbar = BarComponent.create("invox-bar");
   invoxbar.show();


   Copy to clipboard

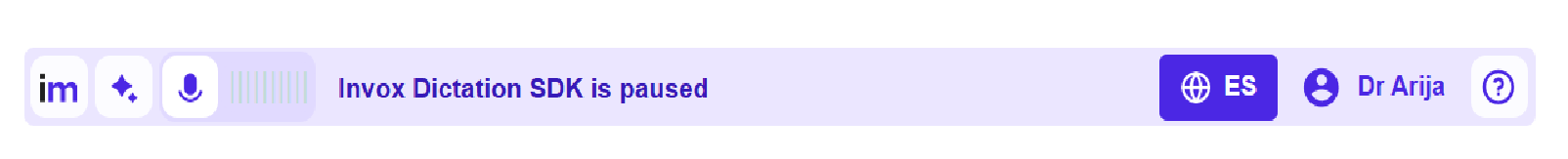

3. Login

Initialize the SDK, register component customization, then log in through the Dictation Bar. Direct Dictation starts after Corporate Server authentication succeeds.

INVOX.init({
    organizationId: "provided-organization-id",
    appId: "provided_app_id",
    apiKey: "provided_api_key",
    // adminServiceUrl: "provided_admin_service_url",
    // wakeWordAssetBaseUrl: "/assets/wake-word-assets/",
});

INVOX.CustomizeComponents(() => {
    // Register optional SDK callbacks here before login.
});

const credentials = {
    user: "provided_username",
    password: "provided_password"
}

try {
    await invoxbar.login(credentials);
    INVOX.LogInfo("Direct Dictation session connected successfully.");
} catch (error) {
    INVOX.LogError("Could not start the Direct Dictation session.");
}

All INVOX.init values are provided by Invox Medical for your integration:

• organizationId (required): identifier of your organization in Corporate Server. Lowercase letters, digits, and hyphens only.
• appId (required): identifier of the application that integrates the SDK.
• apiKey (required): API key associated with appId.
• adminServiceUrl (optional): Corporate Server URL. If omitted, the SDK uses the Invox Medical Corporate Server. Set it only when your organization uses its own Corporate Server or a proxy of your application.
• wakeWordAssetBaseUrl (optional): location of the wake-word-assets folder. If omitted, the SDK looks for it next to the SDK bundle. Set it only if you use wake-word detection and publish that folder elsewhere on the same origin.

See init for details.

4. Logout

invoxbar.logout()
    .then((result) => console.log("Successful logout!"))
    .catch((e) => console.error(e));

Public methods

create

const invoxbar = BarComponent.create("invox-bar");

show

invoxbar.show();

hide

invoxbar.hide();

remove

invoxbar.remove();

login

Parameters:

• credentials: Object
  • user: String
  • password: String

Before calling invoxbar.login(credentials), call INVOX.init(...) and register INVOX.CustomizeComponents(...). Do not configure transcriptionServiceUrl; the Direct Dictation endpoint is selected by the SDK build.

invoxbar.login(credentials)
    .then(() => console.log("Successful login!"))
    .catch((e) => console.error(e));

logout

invoxbar.logout()
    .then((result) => console.log("Successful logout!"))
    .catch((e) => console.error(e));

Customize design

The bar component includes CSS variables in the auto-injected stylesheet for easy customization:

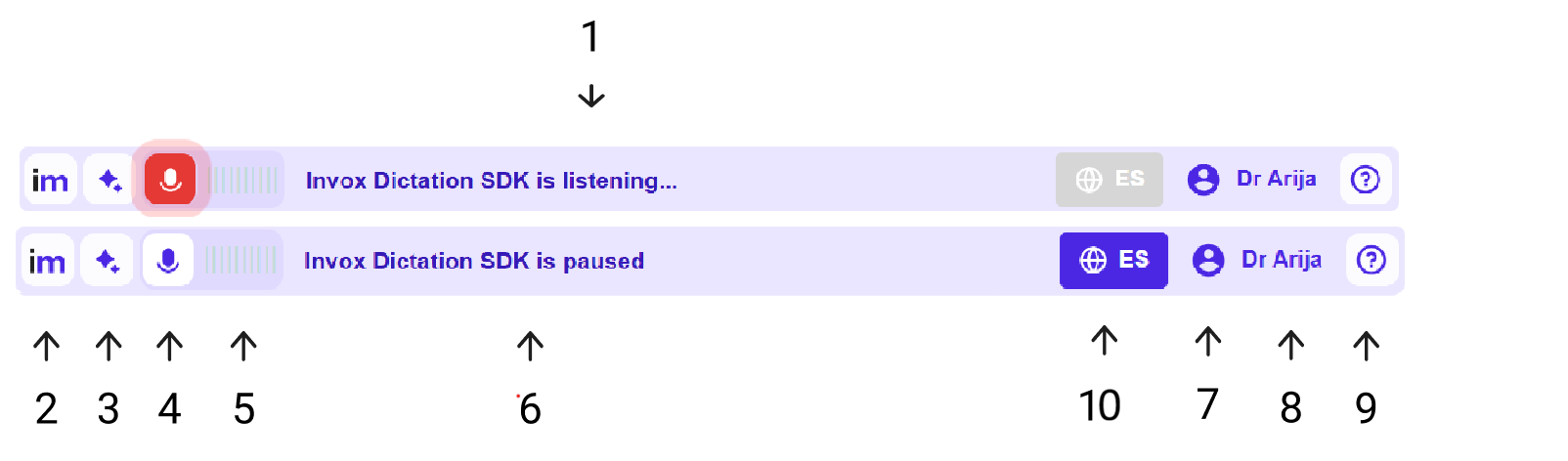

How to use

1. Loading progress percentage — Displays the load percentage at login.
2. Actions menu — Display a list of the current user actions like templates / dictionary.
3. AI menu — Opens the AI options menu, like intelligent formatting or auto fill templates.
4. Dictation button (Recognizer) — Start or stop voice recognition.
5. Audio level indicator — Displays the audio level activity during the session.
6. Status bar & Hypothesis viewer — Displays session status messages and recognized hypothesis during dictation.
7. Profile button — Opens the user profile.
8. User name — Displays the name of the current logged user.
9. About menu — Opens the About menu.
10. Transcription model language selector — Changes the language used by the transcription model.

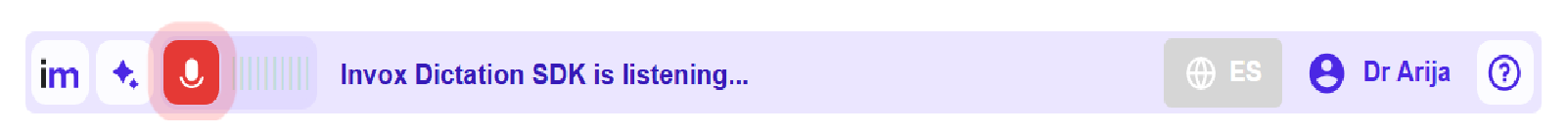

How to dictate

1. Click the Dictation button to start recognizer.
2. Dictate your medical report.
3. Click again on the Dictation button to stop recognizer.

Reset component at runtime

For single-page applications (SPA) where you need to regenerate the Dictation Bar without reloading the page:

function resetComponent(credentials) {
    // Step 1. Logout is absolutely necessary even if an error has occurred.
    invoxbar.logout()
        .catch((e) => console.error(e))
        .finally(() => {
            // Step 2. Remove from the DOM.
            invoxbar.remove();

            // Step 3. Create the dictation bar again.
            invoxbar = BarComponent.create("invox-bar");

            // Step 4. Log in to Direct Dictation again.
                invoxbar.login(credentials)
                .then(() => console.log("Successful login!"))
                .catch((e) => console.error(e));
        })
}
